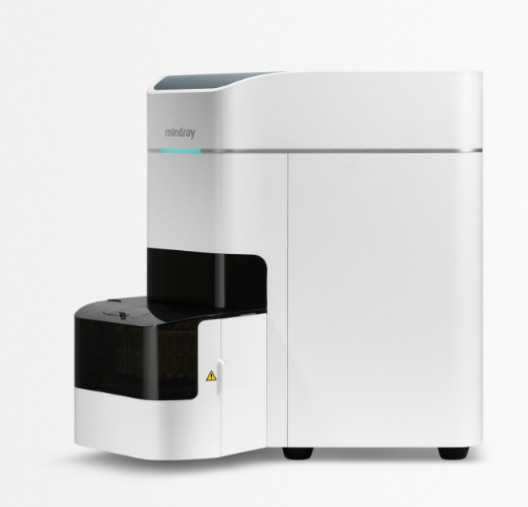

BriCyte® MX

Unlocking Efficient Cytometry with Multi-colored Lasers

A new addition to Mindray’s flow cytometry family

Description
BriCyte MX Capacity

3-laser configuration for expanded applications

  • 3 lasers and 14 colors available
  • Active temperature control in the optical system
  • Greatly increased sensitivity and throughout
BryCyte MX Efficiency

Multi-layer automation for increased efficiency

  • Multi-mode fluorescence compensation
  • Expanded automated algorithms
  • Innovative automated review
BriCyte MX Interaction

Flexible software for a seamless user experience

  • Increased flexibility and efficiency in graphic manipulation
  • Flexible expansion of report results
  • Intelligent guide for fault handling
<div data-cmp-data-layer="{"text-b0a2f9b836":{"@type":"xpace/components/content/publics/text","repo:modifyDate":"2024-08-20T02:18:10Z","xdm:text":"

Enhanced Capacity & Quality

rn

Suitable for a broad range of test panels

rn”}}” id=”text-b0a2f9b836″ class=”cmp-text” style=”margin: 0px; padding: 0px 0px 0.78125vw; box-sizing: border-box; -webkit-tap-highlight-color: transparent; word-break: break-word; font-size: 1.14583vw; line-height: 1.6; color: rgb(114, 113, 113);”>

Enhanced Capacity & Quality

Suitable for a broad range of test panels

Delivering consistent quality with diverse configurations

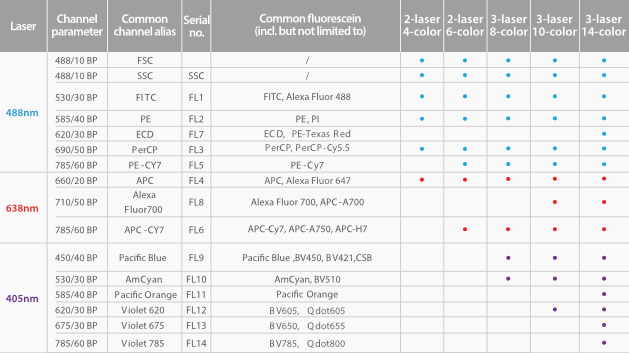

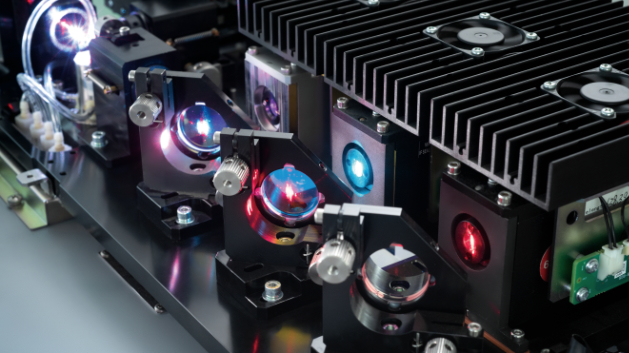

Up to 3 lasers and 14 colors available
Carrousel/single-tube modes available for loading
Active temperature control in the optical system
bricyte-mx-fig2-1-1-cn
bricyte-mx-fig2-1-2-en

Ensuring reliable results with superior performance
  • Superior fluorescence sensitivity in each channel
  • A high throughput of up to 35,000 events/s
  • Carryover ≤ 0.1%
bricyte-mx-fig3-1-pc-cn

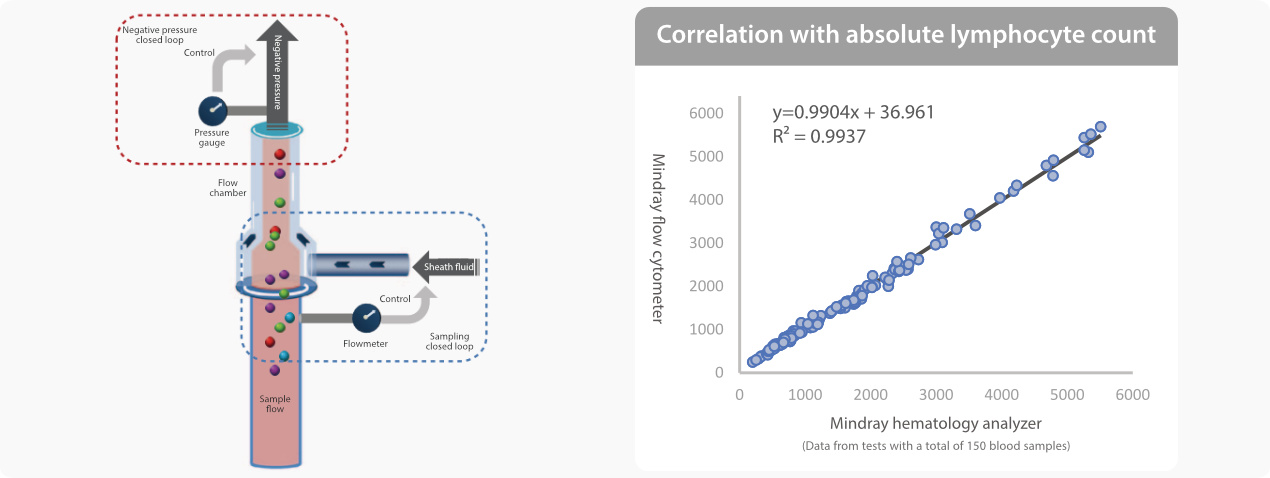

Absolute Counting 2.0
  • Absolute counting by flow sensor volume
  • No extra consumables required
  • Innovative algorithm design, delivering excellent performance across high, medium, and low counts
bricyte-mx-fig3-2-pc-en

<div data-cmp-data-layer="{"text-c953d4a34b":{"@type":"xpace/components/content/publics/text","repo:modifyDate":"2024-08-20T02:23:25Z","xdm:text":"

Automation-driven Efficiency

rn

Multi-layer automation for increased efficiency
rn

rn”}}” id=”text-c953d4a34b” class=”cmp-text” style=”margin: 0px; padding: 0px 0px 0.78125vw; box-sizing: border-box; -webkit-tap-highlight-color: transparent; word-break: break-word; font-size: 1.14583vw; line-height: 1.6; color: rgb(114, 113, 113);”>

Automation-driven Efficiency

Multi-layer automation for increased efficiency

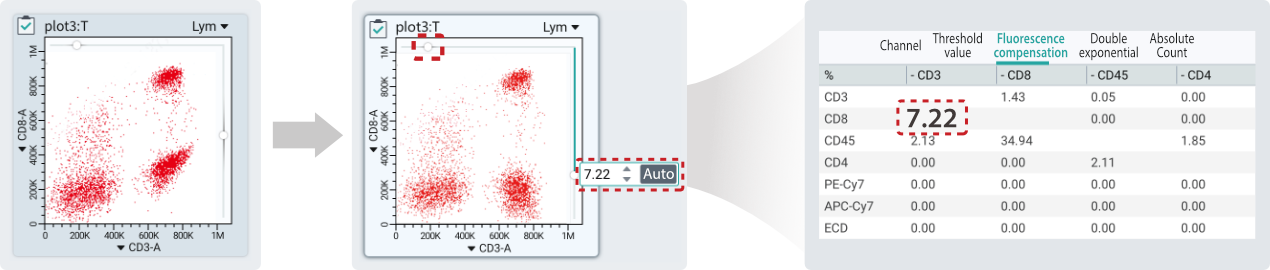

Multi-mode fluorescence compensation with unparalleled ease
  • Adjustable by slider, manual entry, or automatically
  • Truly hassle-free operation for compensation
bricyte-mx-fig4-1-pc-en

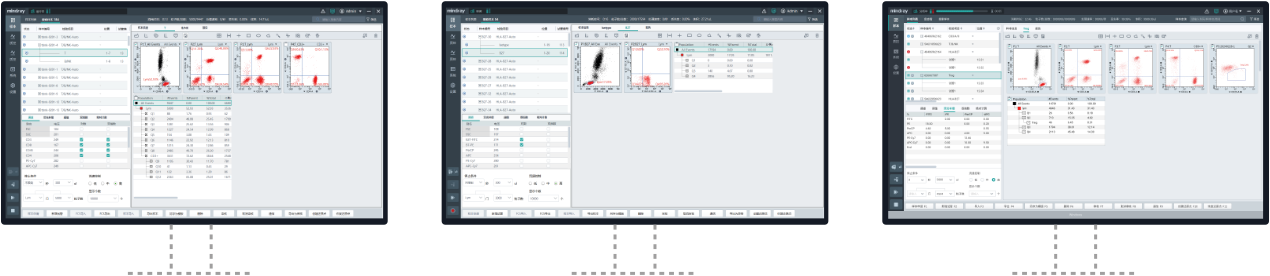

Expanded automated algorithms

Panels such as lymphocyte subsets (TBNK), human leukocyte antigen B27 (HLA-B27), and regulatory T cells (Treg) are tested automatically, with test reports generated automatically as well.

bricyte-mx-fig4-2-pc-cn

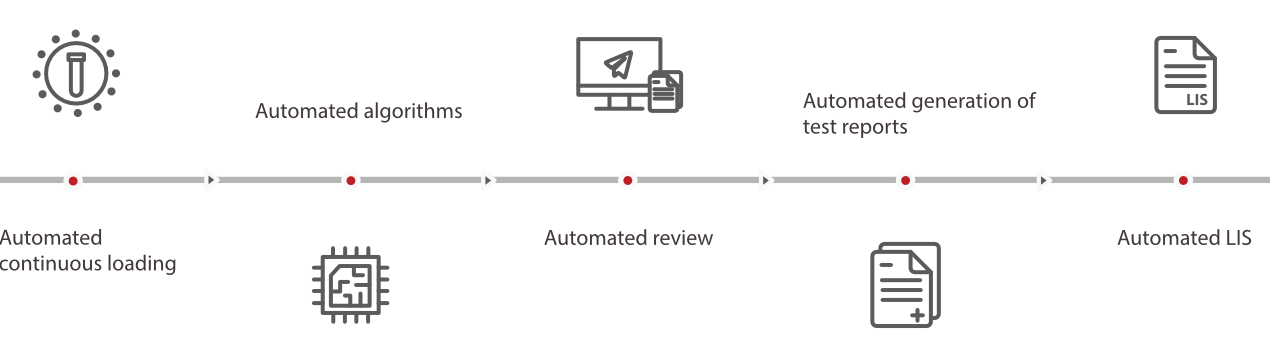

End-to-end automation from analysis to review

Automated review based on graphics and results: innovative yet standardized.

bricyte-mx-fig4-3-pc-en

Interactive Excellence

User-friendly and convenient software

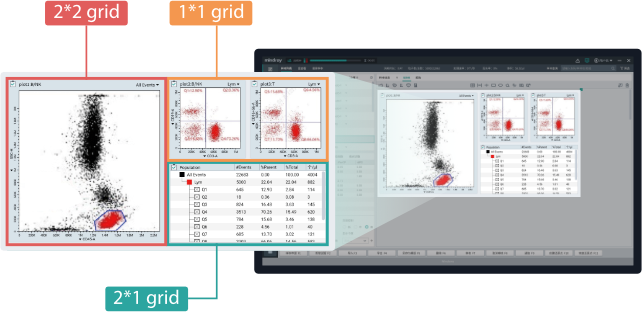

  • Great flexibility in manipulating graphics

    • Tile-based design for a grid layout
    • Graphics can be resized as required and automatically arranged

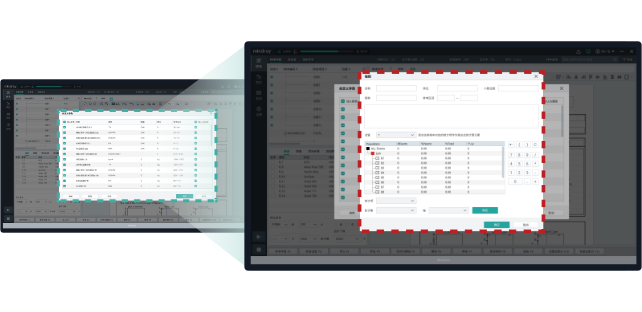

  • Flexible expansion of report results

    • A full-featured built-in formula editor
    • Customize exclusive reports by adding and combining result parameters as needed

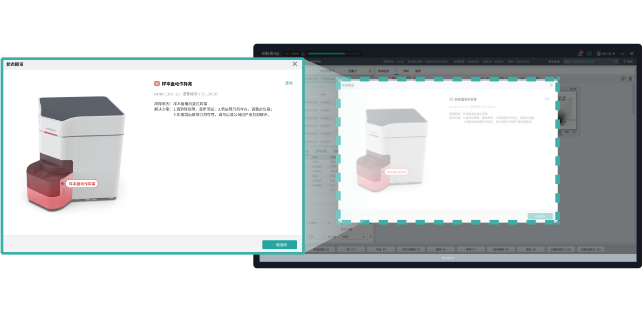

  • Intelligent guide for fault handling

      Guided solutions for fault handling

Optional Configuration and Catalog Number
Optics Autoloader Power Cord Catalog Number
2 lasers
6 colors		 No Chinese Standard 3810B-PA00001
European Standard 3810B-PA00002
American Standard 3810B-PA00003
British Standard 3810B-PA00004
Brazilian Standard 3810B-PA00005
Australian Standard 3810B-PA00006
Yes
 Chinese Standard 3810B-PA00007
European Standard 3810B-PA00008
American Standard 3810B-PA00009
British Standard 3810B-PA00010
Brazilian Standard 3810B-PA00011
Australian Standard 3810B-PA00012
3 lasers
14 colors		 No Chinese Standard 3810B-PA00013
European Standard 3810B-PA00014
American Standard 3810B-PA00015
British Standard 3810B-PA00016
Brazilian Standard 3810B-PA00017
Australian Standard 3810B-PA00018
Yes Chinese Standard 3810B-PA00019
European Standard 3810B-PA00020
American Standard 3810B-PA00021
British Standard 3810B-PA00022
Brazilian Standard 3810B-PA00023
Australian Standard 3810B-PA00024
